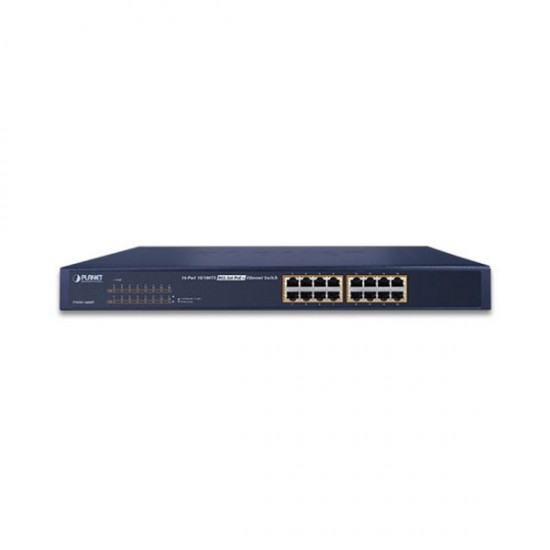

Planet 16 Port Gigabit PoE Unmanaged Switch
| Operating Temp. Range | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| PoE standard | IEEE 802.3af Power over Ethernet/PSE IEEE 802.3at Power over Ethernet Plus/PSE |
| Power Pin | 1/2(+), 3/(-) |
| PoE Power Output | Per port 52V DC ( max.30.8 watts) |
| PoE Power budget | 125 watts |
| Storage Temperature | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Hardware Version | 4 |
| Copper Ports | 16 10/100BASE-TX RJ45 auto-MDI/MDI-X ports |
| PoE Inject Port | 16 ports with 802.3at/af PoE injector function with Port-1 to Port-16 |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 3.2Gbps/non-blocking |
| Switch Throughput | 2.38Mpps@64 bytes (packet per second) |
| Address Table | 8K entries, automatic source address learning and aging |
| LED | System: Power(Green) Port 1 to Port 16: 10/100 LNK/ACT (Green) PoE-in-Use (Orange) |
| Dimensions (W x D x H) | 445 x 207 x 45 mm |
| Weight | 2330g |
| Power Consumption | Max. 128.4 watts/440.54 BTU |
| Power Requirements | AC 100~240V, 50/60Hz, 2A max. |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3x flow control and back pressure IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
| REGULATORY | FCC Part 15 Class A, CE |
