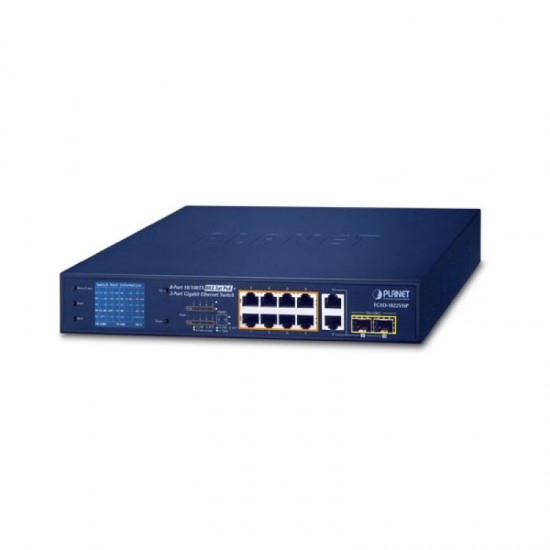

Planet 8 Port Gigabit PoE Unmanaged Switch
| 802.3af/802.3at PoE Injector Port | 8 |
| 10/100BASE-TX MDI/MDIX Ports | 8 |
| 10/100/1000BASE-T MDI/MDIX Ports | 2 (Combo) |
| 1000BASE-X SFP/mini-GBIC Slots | 2 (Combo) |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 5.6Gbps/non-blocking |
| MAC Address Table | 8K entries |
| Switch Throughput | 4.17Mpps@64 bytes |
| Maximum Frame Size | 9216 bytes |
| LCD Monitor (W x D) | 40.6mm x 30.5mm, 2-inch |
| Buttons | Menu, Enter, Back, Up and Down |
| Enclosure | Metal |
| ESD Protection | Contact discharge of ±4KV DC Air discharge of ±6KV DC |
| Flow Control | IEEE 802.3x pause frame for full duplex; back pressure for half duplex |
| Surge Protection | ±4KV |
| LED | System: Power (Green) 10/100BASE-TX RJ45 Interfaces: 10/100Mbps LNK/ACT (Green) PoE-in-Use (Orange) 1000BASE-X SFP Interfaces: LNK/ACT (Green) 1000BASE-T TP Interfaces: LNK/ACT (Green) 1000Mbps (Green) |
| Dimensions (W x D x H) | 180 x 280 x 44mm (1U height) |
| Weight | 1.8kg |
| Power Consumption | Max. 130watts/446 BTU |
| Fan | 1x Thermal Fan |
| Power Requirements | 100~240V AC, 50/60Hz, 2.5A max. |
