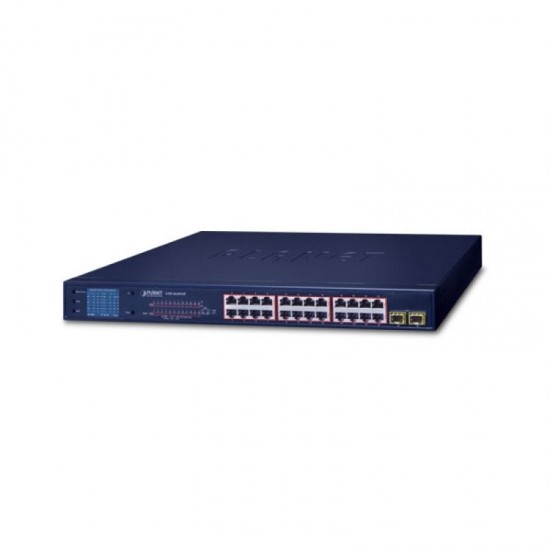

Planet 24 Port Gigabit PoE Unmanaged Switch
| 802.3af/802.3at PoE Injector Port | 24 |
| 10/100/1000BASE-T MDI/MDIX Ports | 24 |
| 1000BASE-X SFP/mini-GBIC Slots | 2 |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 52Gbps/non-blocking |
| MAC Address Table | 8K entries |
| Switch Throughput | 38.7Mpps@64 bytes |
| Maximum Frame Size | 9216 bytes |
| LCD Monitor (W x D) | 40.6 x 30.5 mm, 2-inch |
| Buttons | Menu, Enter, Back, Up and Down |
| Enclosure | Metal |
| ESD Protection | Contact discharge of ±6KV DC Air discharge of ±8KV DC |
| Flow Control | IEEE 802.3x pause frame for full -duplex; back pressure for half -duplex |
| Surge Protection | ±6KV |
| LED | System: Power (Green) 10/100/1000BASE-T RJ45 Interfaces: 10/100Mbps LNK/ACT (Red) 1000Mbps LNK/ACT (Green) PoE-in-Use (Amber) 1000BASE-X SFP Interfaces: LNK/ACT (Green) |
| Dimensions (W x D x H) | 440 x 233 x 44 mm (1U height) |
| Weight | 3.5kg |
| Power Consumption | Max. 330watts/1132 BTU |
| Fan | 3x Thermal Fan |
| Power Requirements | 100~240V AC, 50/60Hz, 5A max. |
